HANA
HANA H2001 A+ BLUE 4CYL SET - Hose Type with Distributor
- SKU:
- 120218
- UPC:
- 67.49
- Weight:
- 0.50 KGS
- Shipping:
- Calculated at Checkout
Description

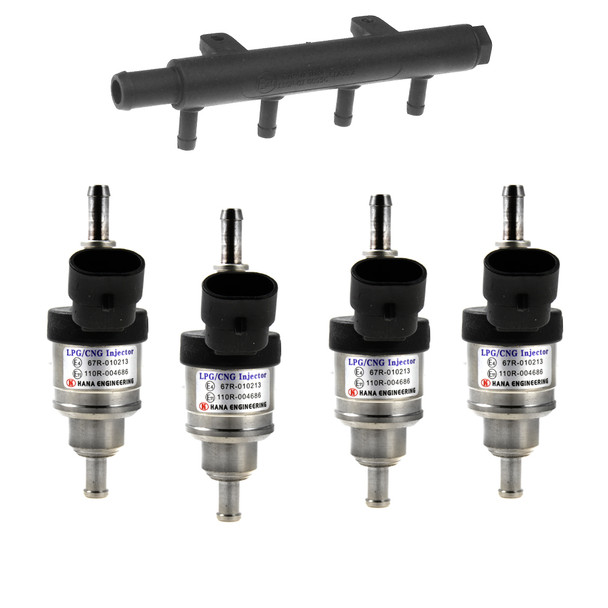

4 Injectors SET of HANA TYPE H2000 A+ (BLUE) with 4CYL Plastic Distribution Rail - Single mount, Valtek connector
HANA LPG/CNG Injectors with long life-span (around 500 milion cycles) are one of the best on the market. HANAs are very competitive to and easy swappable with japanese Keihin injectors.
HANA A+ Blue Injectors works with following car Horse Power:
- 4 Cylinders: 160~240hp
- 8 Cylinders: 320~480hp
HANA Injectors comparision chart:
HANA H2000 | KEIHIN | ||||||||||
Type | Max HP/Cyl. | Flow @1.2bar | Ohm | Voltage | Max press. | Open time | Closing time | Size | Type | Flow (cc/str) | Max HP/Cyl |
C- Black | 30 | 75 | 1.9Ω | 12V | 4.0bar | 2.0ms | 1.2ms | 70mm x Φ25mm | |||
B- Red | 40 | 90 | 2.24ms | Orange | 63cc | 36.2 | |||||
A- Green | 50 | 115 | 2.36ms | Yellow | 73cc | 46.9 | |||||
A+ Blue | 60 | 150 | Brown | 100cc | 63 |
2 Reviews
-
Worked great
Installed on Ls1 5.7 with Versus cng system. They were listed in setup and worked without changing regulator pressure.
-
Excellent upgrade over BRC
Originally had a BRC system using yellow injectors. After a 4th injector fail I decided it was time to go for a different make. What can I say, best move I made.... These flow better than the yellows for sure and due to the individual mount options are much easier to hide away as well. The injector hose between the injector and inlet manifold has dropped from about 7" to less than 2". I had to cut gas timings back quite a bit as well, with the yellows hitting 110% at WOT and these still being less than 90% in comparison. This is on a Saab 9-5 Aero 2.3 turbo (4 cyl) running 280bhp and 330lb/ft torque. Far more capable than stated. Just ditched the rest of the BRC system so will see how the new one deals with them. Fingers crossed it's onwards and upwards.....
