Magic Jet 3 cylinders Injector Rail

(No reviews yet) Write a Review
SKU:
120803
UPC:
41.39
Weight:
0.40 KGS
Shipping:
Calculated at Checkout
  • hl propan magic jet gas injectors 3 cylinders with temperature probe and pressure output
  • MAGIC JET 3 cylinders Injectors  Rail
  • MAGIC JET 3 cylinders Injectors  Rail Description
£48.99 Inc. VAT
£40.82 Ex. VAT

Description

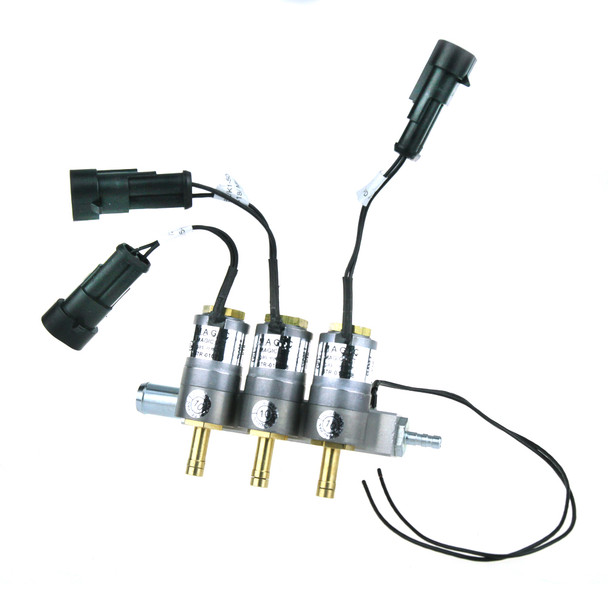

MAGIC JET 3 Cylinders Injector Rail with temperature sensor and pressure output



One of the fastest gas, LPG, CNG, propane injectors in the set of 3 on the market working with most of the autogas systems.





General characteristics:

Handled fluid                         LPG / CNG
Max device pass                     52 ccm (air 1 Bar , puls 24 ms) cca 60 HP/cyl., 1,5 Bar rel.
Product life expectancy            >250 000 000 cycles >200 000 km (2500 RPM, 60km/h)
Maximum operating frequency 300 Hz
Operating response time (+12V DC ON) 2,2ms ± 0,2 ms (1Bar rel. air)
Closing response time             1ms ± 0,2 ms (1Bar rel. air)
Operating temperature range   -20°C ÷ 120°C
Gaseous phase filtration requirements 80 microns
Lubrication                             Not required
Operating pressure range        0,5 ÷ 4,5 Bar
Pressure response time           P0 -> Pmax < 1,0 ms (1Bar rel air)
Pressure response time           Pmax -> P0 < 1,0 ms (1Bar rel air)


Electrical characteristics:

Electrical control Ref .encl 1
Speed -Up voltage    10V DC ÷15 VDC
Speed –Up time        4 ms
Opening curent         1,8 A / 3,6V (1Bar rel. air)
Holding current         1,0 A
Power absorption in holding 12W (12V)
Resistance               2 Ohm (20°C)
IP protection ratio     IP65
