100 Litres Motorhome Gas Tank Ø360mm by 1087mm
- SKU:
- 400014
- Availability:
- 3-5 working day delivery available
- Weight:
- 35.50 KGS
- Shipping:
- £20.00 (Fixed Shipping Cost)
£463.99
Inc. VAT
£386.66
Ex. VAT
0% interest for 4 months with PayPal Credit. Find out more
Description

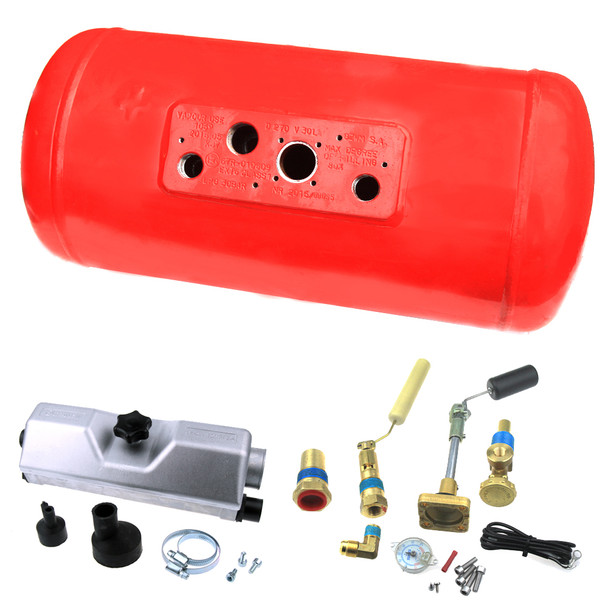

20 Litres Motorhome Vapour Gas Tank Ø200mm by 721mm with set of valves and box
Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase.
The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station.
Specification
| Diameter | 200mm |
| Length | 721mm |
| Tank weight | 15kg |
| Usable capacity | 16L (8.32kg) |
| Full tank weight | 23kg |
Valves
The valves starting from the left are:
- Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH
- over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment
- gas level float with mechanical gauge
- filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC
| Diameter [mm] | Lenght [mm] | Capacity [L] | 80% capacity | Empty weight [kg] | Full tank weight [kg] |
|---|---|---|---|---|---|
| 200 | 583 | 16 | 13L (6.76kg) | 13.5 | 20 |
| 200 | 721 | 20 | 16L (8.32kg) | 15 | 23 |
| 200 | 891 | 25 | 20L (10.4kg) | 16.8 | 26.8 |
| 200 | 1070 | 30 | 24L (12.48kg) | 18.9 | 30.9 |
| 230 | 645 | 23 | 18L (9.36kg) | 14.5 | 23.5 |
| 230 | 822 | 30 | 24L (12.48kg) | 16.5 | 28.5 |
| 230 | 1014 | 38 | 30L (15.6kg) | 19.2 | 34.2 |
| 270 | 605 | 30 | 24L (12.48kg) | 14.6 | 26.6 |
| 270 | 785 | 40 | 32L (16.64kg) | 17.2 | 33.2 |
| 270 | 1060 | 55 | 44L (22.88kg) | 21.7 | 43.7 |
| 300 | 647 | 40 | 32L (16.64kg) | 17.2 | 33.2 |
| 300 | 935 | 60 | 48L (24.96kg) | 21.8 | 45.8 |
| 300 | 1085 | 70 | 56L (29.12kg) | 23.4 | 51.4 |
| 315 | 870 | 60 | 48L (24.96kg) | 24.5 | 48.5 |
| 315 | 1000 | 70 | 56L (29.12kg) | 28.4 | 56.4 |
| 360 | 629 | 55 | 44L (22.88kg) | 24.9 | 46.9 |
| 360 | 936 | 85 | 68L (35.36kg) | 33 | 67 |
| 360 | 1087 | 100 | 80L (41.6kg) | 36 | 76 |
| 360 | 1298 | 120 | 96L (49.92kg) | 40.2 | 88.2 |
