Dymco

1.9mm One Stripe DYMCO Calibration Nozzle

(No reviews yet) Write a Review

SKU:: 121009
UPC:
MPN:
Weight:: 0.05 KGS
Shipping:: Calculated at Checkout

£0.59 Inc. VAT

£0.49 Ex. VAT

Current Stock:

Quantity:

Description
0 Reviews

Description

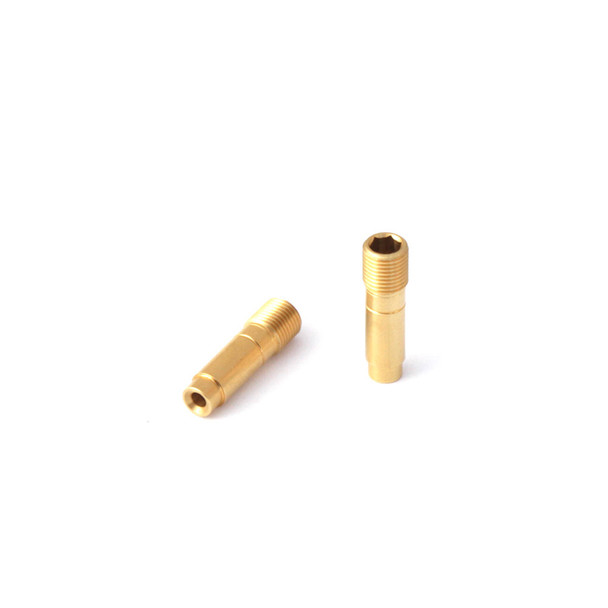

DYMCO 1.9mm White Injector Calibration Nozzle

1.9mm nozzle is dedicated for engines with up to 20HP per cylinder power.

Dymco Injectors Technical Specification

Model/Connector

GISM-i3XXX / AMP C-282104[Valtek]

Homologations

ECE R67/R110, GOST

Fuel type

LPG, CNG

Label Color

Silver

White

Nozzle Size [Orifice/mm]

1.9mm

2.1mm

2.4mm

3.8mm
(Without Nozzle)

3.2mm
(Big Flow)

Flow range [hp/cyl]

~ 20 hp/cyl

17 ~ 27 hp/cyl

24 ~ 36 hp/cyl

33 ~ 47 hp/cyl

40 ~ 60 hp/cyl

Flow range [CC/stroke]

100

Gas inlet rail

12mm/16mm hose connection with aluminum rail

Integrated filter

71 micron

Operating temperature range

-40 ℃ ~ +120 ℃

Coil resistance [Ω]

1.7 Ω / 3.0 Ω ± 0.06 Ω at 20℃

Coil inductance [mH]

2.95 ± 0.4 Mh at 20℃

Operating Voltage Range

Min 6V ~ Max 18V

Max Working Pressure

4.5 bar [450KPa]

Net Weight

RAIL INJECTOR

HOSE INJECTOR

INJECTOR WITH RAIL [3CYL]

INJECTOR WITH RAIL [4CYL]

NOZZLE

114g

116g

694g

850g

1.2g

Model No.	Silver - GISM-i3100/GISM-i3110	White - GISM-i3000/GISM-i3010
TYPE	RAIL TYPE/HOSE TYPE	RAIL TYPE/HOSE TYPE
NOZZLE SIZE	1.9/2.1/2.4mm(Nozzle changeable type)	3.2mm (Fixed nozzle type)
COLOR	SILVER	WHITE
COIL	1.7OHM	1.7OHM
OPENING TIME	1.95ms	2.50ms
CLOSING TIME	2.35ms	3.10ms
